Instruments
We can offer different Lab Instruments for Labs in Pharma and other Quality Assurance Labs for all kind of Industries. This product range will be expanded soon.
Split Beam UV VIS Spectrophotometer

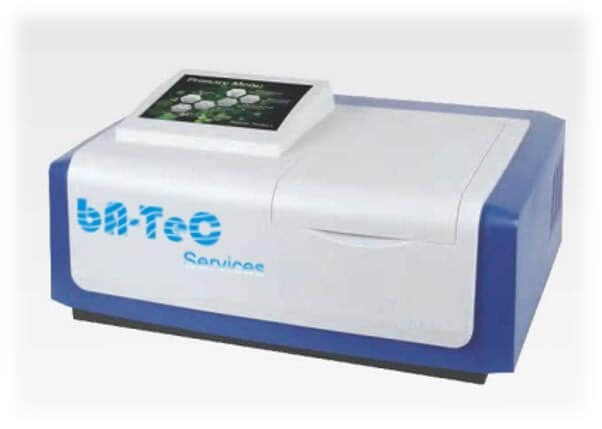

L6S / L6 UV-Vis spectrophotometer
Product by BatecL6S / L6 UV-Vis spectrophotometer uses advanced ratio of split-beam optical system, low-noise circuit design, with excellent reliability and stability. Can meet the daily analysis to the scientific research and so on a wide range of application needs.
8-inch color touch LCD display convenient operation. High-performance monochromator with low-stray light and high-performance. "Shiny holographic grating" with high-performance, high accuracy and reliability. Excellent cost performance. Unique automatic adjustment "0" adjustment "100", automatic 8-hole sample rack. Full-band scanning (limited to S), sub-band scanning (limited to S models), dynamic time scanning Optional thermal plotter, can be data printing, spectral scanning (limited to S) fixed wavelength scanning, linear regression curve drawing. USB interface, combined with UVwin8 UV spectrum software. Advanced power protection measures. Instrument uses high-energy imported long life flange positioning deuterium lamp.
| Metering mode | the proportion of dual-beam |
|---|---|
| Monochromator | Czerny - Turner |
| Focal length | 160mm |
| Grating | 1200 lines / mm |
| Detector | photocell |
| Spectral bandwidth | 2nm |
| Wavelength setting | Touch screen input |
| Wavelength range | 190 - 1100nm |
| Wavelength Accuracy | ± 0.5nm |
| Wavelength repeatability | ≤ 0.2nm |
| L6S / L6 UV-Vis | Power supply voltage - AC220V ± 22V 50Hz ± 1Hz; Light source - 12V20W halogen lamp and long life deuterium lamp mm Rated power - 200W |
|---|
Particle Measurement Laser Diffraction LT 2200/ 2200E / 3600
LT 2200/ 2200E / 3600 Particle Size Analyzer
Product by BatecLT2200 & LT3600 are a new generation of intelligent laser particle size analyzer with high data acquisition rate based on many years of scientific research. It has Spatial filter and polarization combined with fibre technology
Spatial filter and polarization combined with fibre technology Correction of anomalous change of airy disk (ACAD) in diffraction Tilted cell windows with correction of total-reflection Grilling large angle detector array Optimization of inversion algorithm and self-adaptive technique Continuing dispersant level sensing and control
| Measurement principle | Laser light scattering |
|---|---|
| Analysis | Full Mie theory and Fraunhofer scattering |
| Size range | 0.02μm -- 2200μm, No need for lens change and calibration |
| Light source | Max. 20mW, 638nm Solid-state laser with thermostat integrated |
| Spatial filter | OF Filter with polarization |
| Optical alignment system | Smart rapid align system with full automation |
| Typical measurement time | Less than 10s |
| Data acquisition rate | 20kHz |
| Supply voltage | 220VAC, 50/ 60Hz |
| Optical system dimensions | 670mm x275mm x320mm |
| LT 2200 Particle Size Analyzer | Light source - Max. 20mW, 638nm Solid-state laser with thermostat integrated Size range - 0.02μm -- 2200μm, No need for lens change and calibration |
|---|---|
| LT 2200E Particle Size Analyzer | Light source - Max. 20mW, 638nm Solid-state laser with thermostat integrated Size range - 0.1μm -- 1200 μm , No need for lens change and calibration |
| LT 3600 Particle Size Analyzer | Light source - Max. 20mW, 638nm Solid-state laser with thermostat integrated Size range - 0.02μm -- 3600μm & 0.015μm -- 3600μm , No need for lens change and calibration |
XRF Analyzer
XRF Analyzer

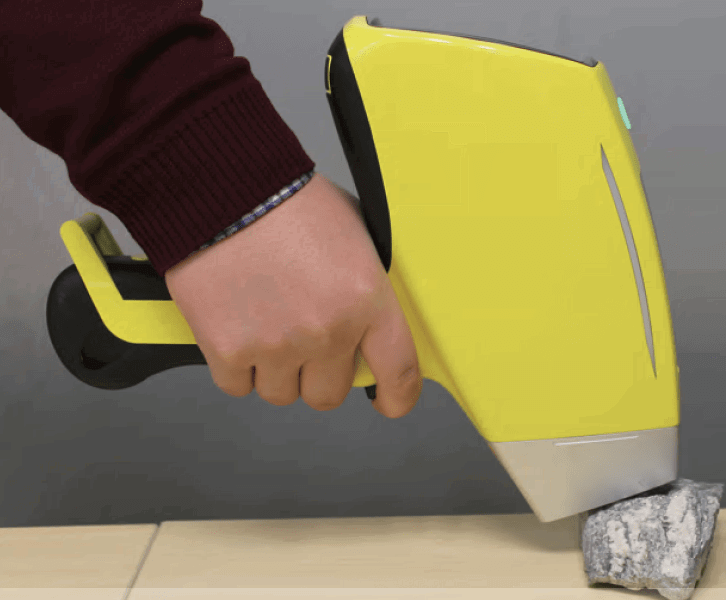

Product by BatecTrueX hand-held alloy analyzer (XRF) is a powerful weapon in material identification (PMI) in production of high temperature and high pressure boiler, container, pipe, etc; metal identification in iron and steel metallurgy, nonferrous metals, aerospace, weapons, submarine vessels, etc; metal material identification in engineering installation and construction projects in areas of the petrochemical refining, fine chemical, pharmaceutical, power plant, aerospace, etc to ensure equipment and material acceptance meet the project specified requirements; scrap metal recycling industry.
Excellent Performance One-touch operation Nondestructive testing (NDT) LANScientific analysis software Scrap metal recycling and sorting Quality Control, Quality Assurance (QC/QA) and Error-proofing( PKKA - YOKE) Data Processing and Enterprise Resource Planning (ERP)
| Power supply system | Intelligent battery management through MSBUS bus, real-time monitoring of the residual capacity of battery and backup battery. |
|---|---|
| Excitation source | 50KV/200μA maximum pipe pressure pipe flow can be adjusted freely , Ag target (standard), Au, W, Rh target (optional). |
| Detector | BOOST Si-PIN detector for TrueX 800. SDD detector for TrueX 860. |
| Range of detection | All elements between Mg and U. |
| Display system | Industrial resistive touch screen with screen size of 4.3". |
| Heat dissipation | Equipped with a dedicated T-shaped radiator to dissipate the heat；no need to wait for cooling of detector time again. |
| Weight | 1.6Kg （ with battery） |
| Dimensions | 254 x 79 x 280 mm（L x W x H）. |
| Handheld Alloy Analyzer |
|---|
| Handheld Precious Metal Analyzer |
| Handheld ROHS Analyzer |
| Handheld Mineral Analyzer |
Fume Extractor
TBH Fume Extractor
Product by BatecTBH provides energy-efficient, low-maintenance systems for every application – from a cost efficient small unit, to powerful central extraction solutions.
1) TBH MultiCover 2) Z-LinepanelPlus filter 3) Particle filter 4) Activated carbon/BAC filter 5) Motor module
| Engine | Brushless |
|---|---|
| Weight | 40kg |
| Height | 700mm |
| Width | 350mm |
| Depth | 350mm |
| Color/Casing | 7035 |
| TBH Fume Extractor |
|---|
