Laser Technology
Our CO2 Laser Systems are based on sealed glass laser tubes or on demand also on RF excited metal tubes. We offer a wide range of output power from 40 W up to 400 Watt. Applications are typical nonmetal Material like Acrylicglas, Wood, Fabric, Leather and much more. We can supply optimised system for special application with special focusing heads and other special Accessories.

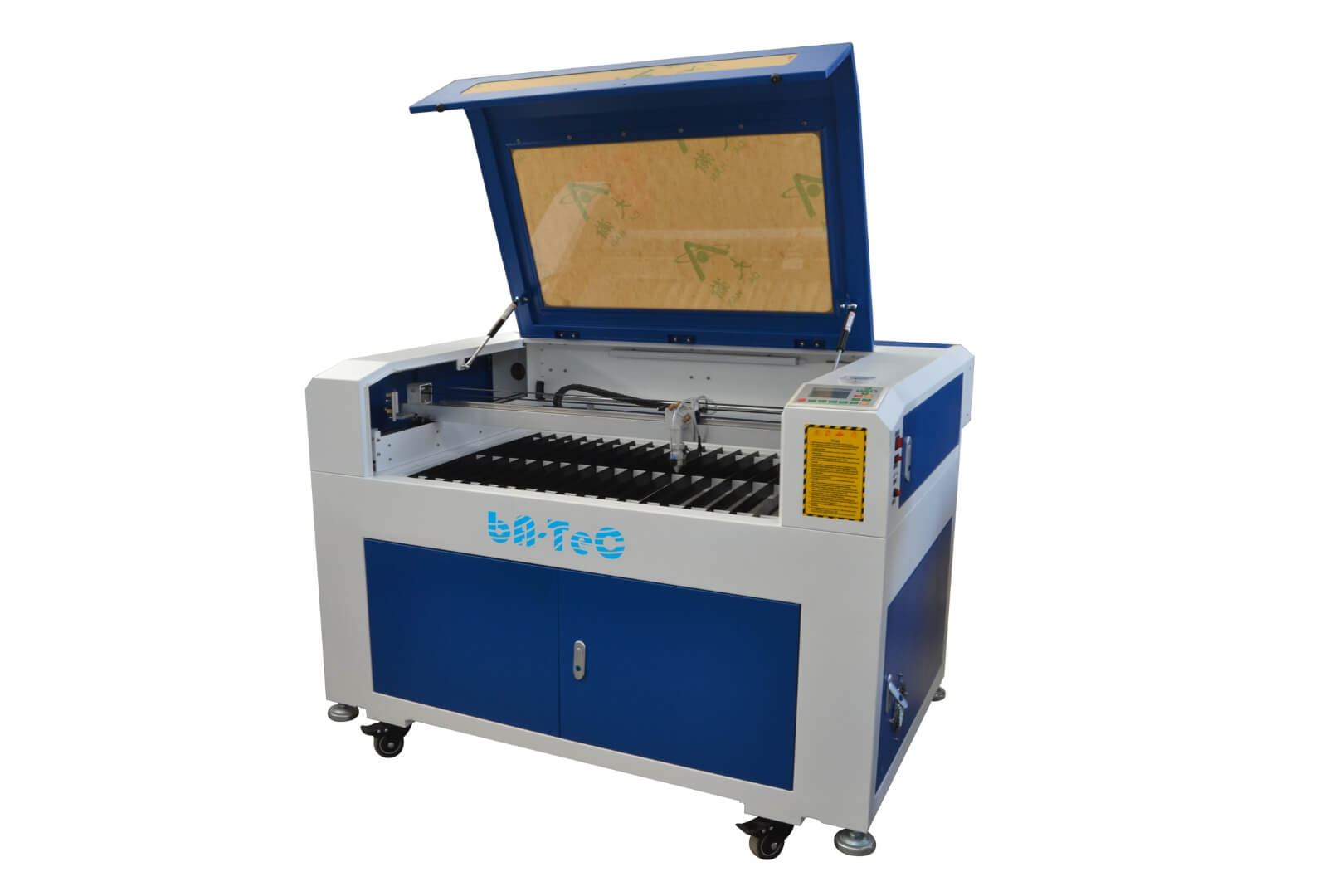

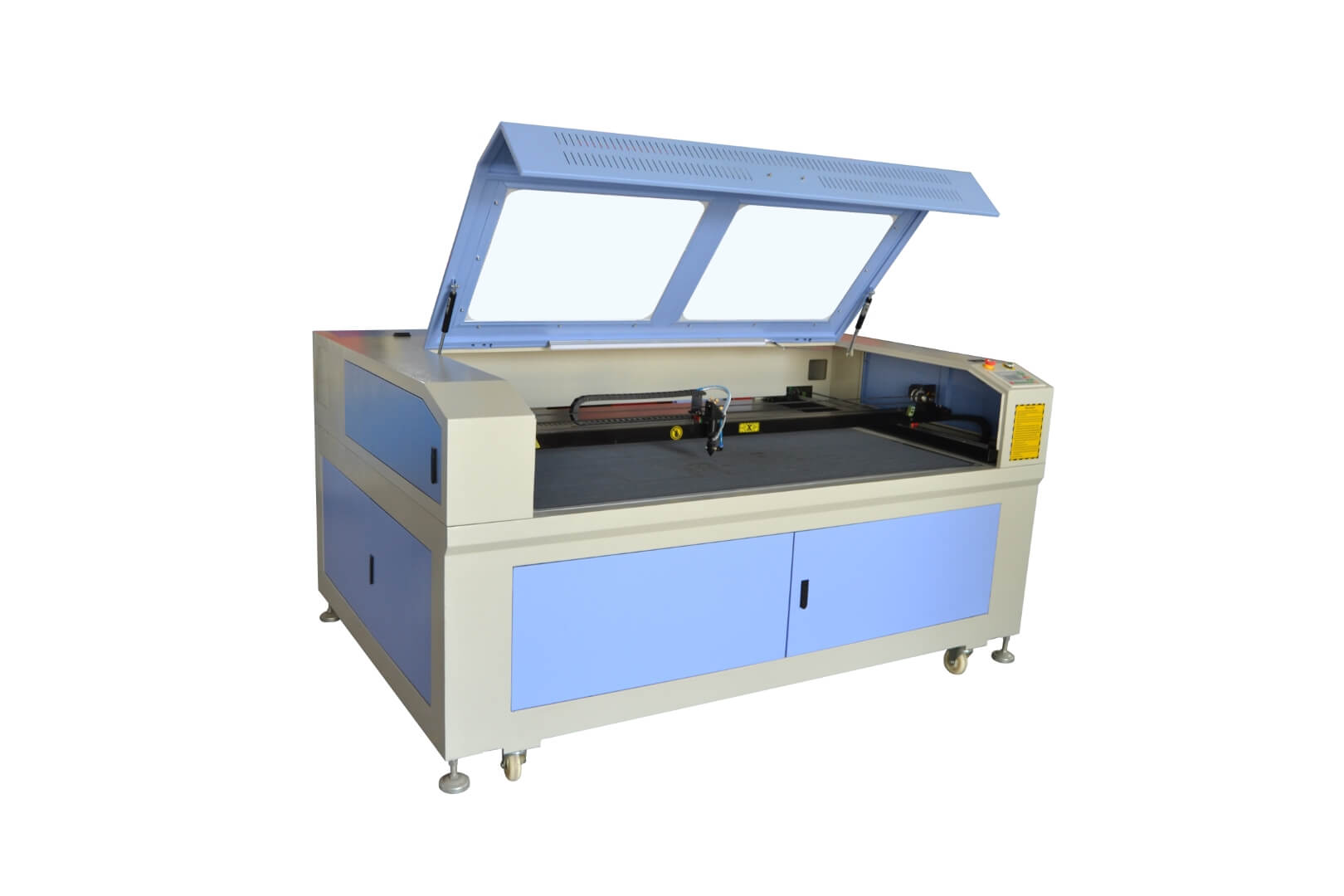

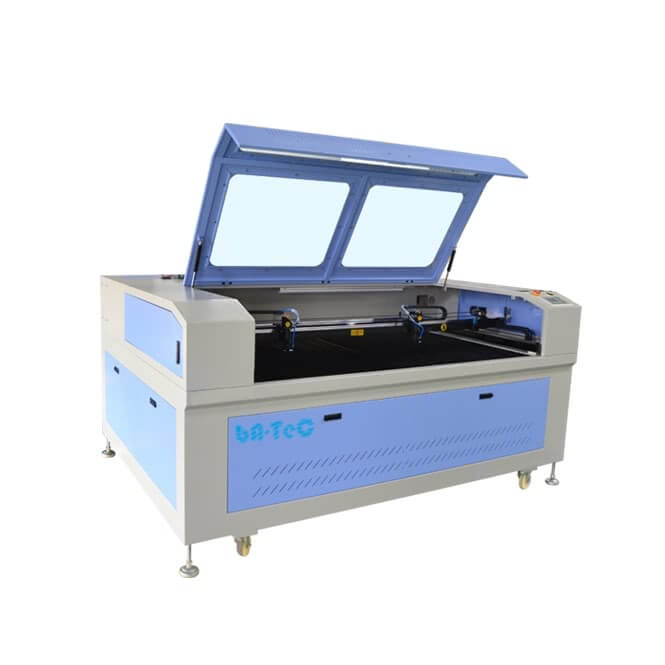

CO2 Laser Cutting and Engraving
BATEC 9060/1390/1610
Product by BatecOur CO2 Laser Systems are based on sealed glass laser tubes or on demand also on RF excited metal tubes. We offer a wide range of output power from 40 W up to 400 Watt. Applications are typical nonmetal Material like Acrylicglas, Wood, Fabric, Leather and much more. We can supply optimised system for special application with special focusing heads and other special Accessories.
Blade working table Beijing Reci laser tube W1 80W Ruida control system Stepper motor and driver Water chiller for laser tube cooling Hiwin square guide rails Exhaust fan Air pump
| Cutting Speed | 0-40000mm/min |
|---|---|
| Engraving Speed | 0-60000mm/min |
| Resetting positioning accuracy | ≤±0.01mm |
| Resolution ratio | ≤0.0125 |
| Laser output | 1-100% software setting |
| Min. shaping character | English 1.0mm x 1.0mm |
| Warranty | Two years |
| BATEC-9060 | Laser Power - 90/100 W; Cutting Area - 900 * 600 mm |
|---|---|
| BATEC-1390 | Laser Power - 90/100/150 W; Cutting Area - 900 * 1300 mm |
| BATEC-1610 | Laser Power - 90/100/150 W; Cutting Area - 1600 * 1000 mm |

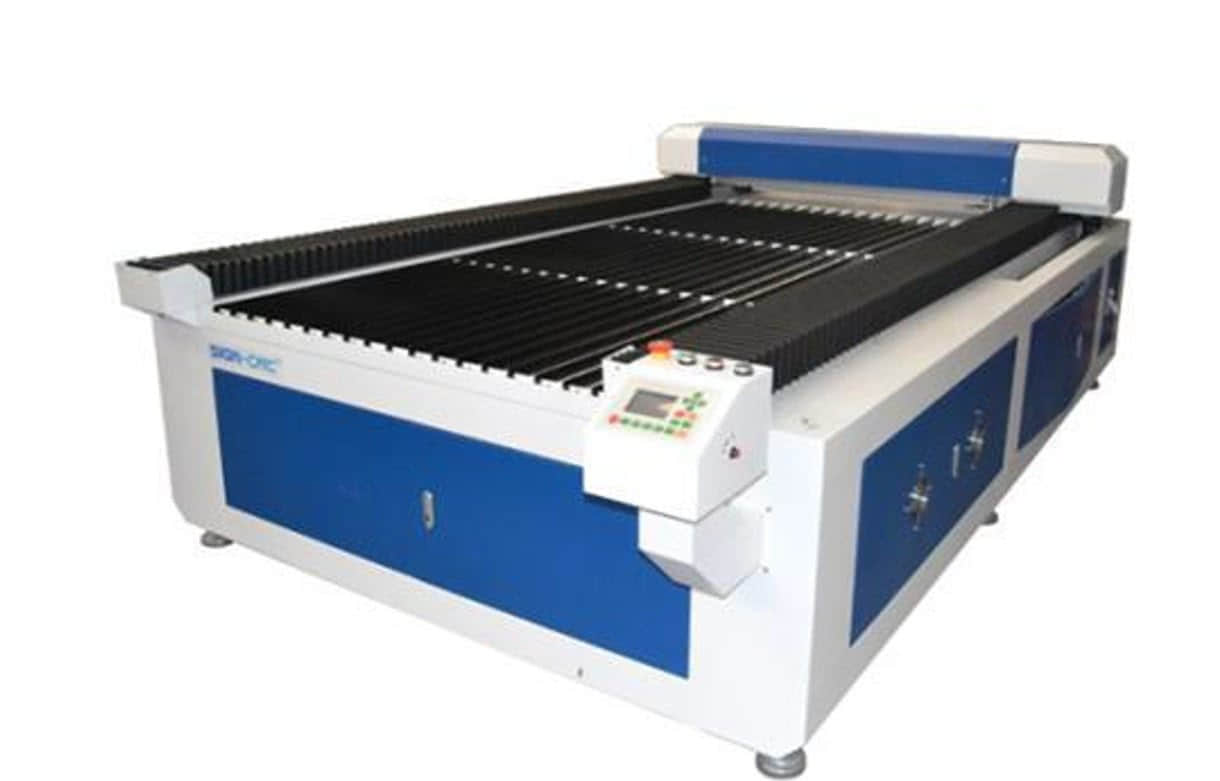

Bed type laser CO2 engraving and cutting machine
BATEC 1318/1325/1530
Product by BatecOur CO2 Laser Systems are based on sealed glass laser tubes or on demand also on RF excited metal tubes. We offer a wide range of output power from 40 W up to 400 Watt. Applications are typical nonmetal Material like Acrylicglas, Wood, Fabric, Leather and much more. We can supply optimised system for special application with special focusing heads and other special Accessories.
Blade working table Beijing Reci laser tube W1 80W Ruida control system Stepper motor and driver Water chiller for laser tube cooling Hiwin square guide rails Exhaust fan Air pump
| Cutting Speed | 0-40000mm/min |
|---|---|
| Engraving Speed | 0-60000mm/min |
| Resetting positioning accuracy | ≤±0.01mm |
| Resolution ratio | ≤0.0125 |
| Laser output | 1-100%softwaresetting |
| Min. shaping character | English 1.0mm x 1.0mm |
| Warranty | Two years |
| BATEC-1318 | Laser Power CO2 - 90/100/150 W; Cutting Area - 900 * 600 mm |
|---|---|
| BATEC-1325 | Laser Power - 90/100/150 W; Cutting Area - 900 * 600 mm |
| BATEC-1530 | Laser Power - 90/100/150 W; Cutting Area - 900 * 600 mm |

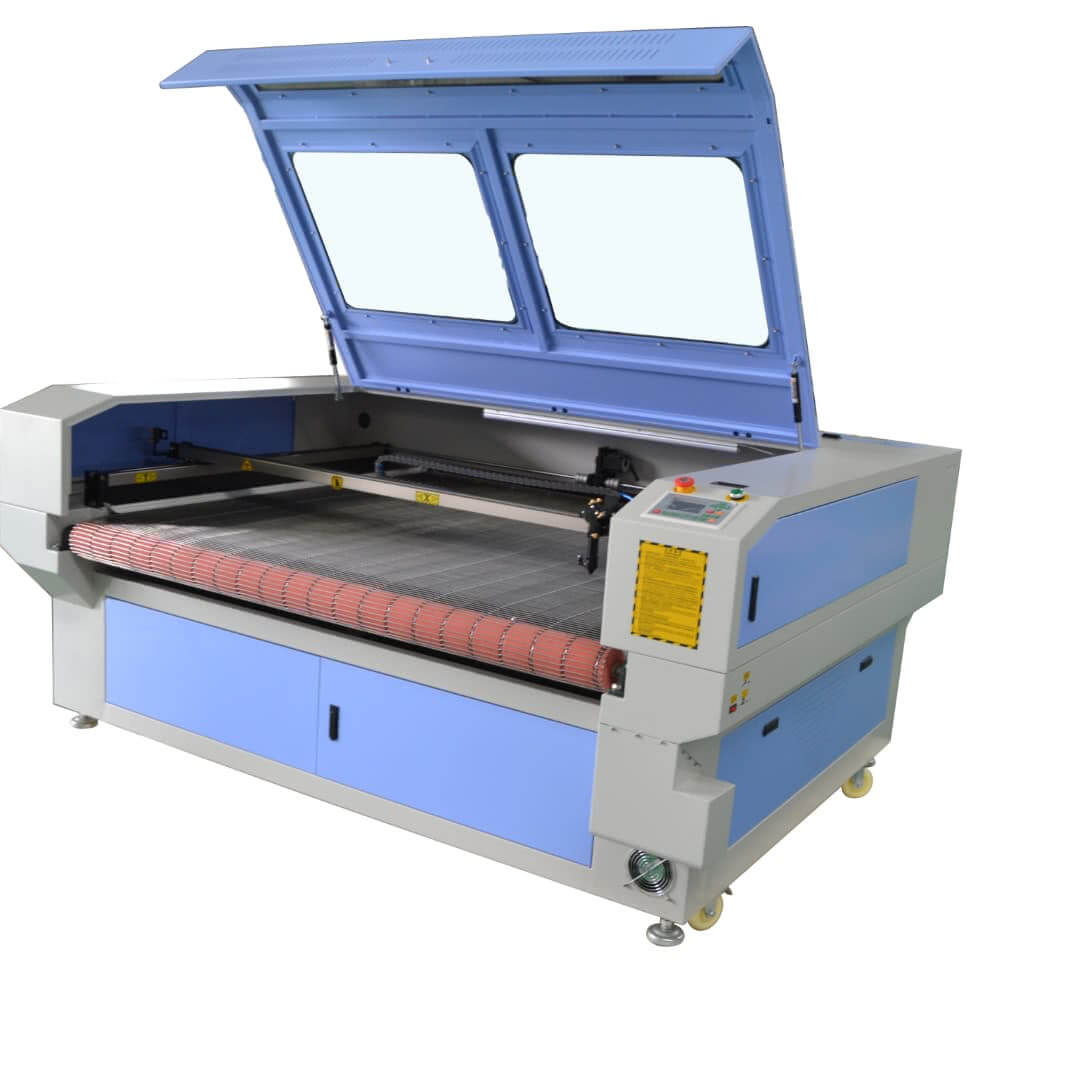

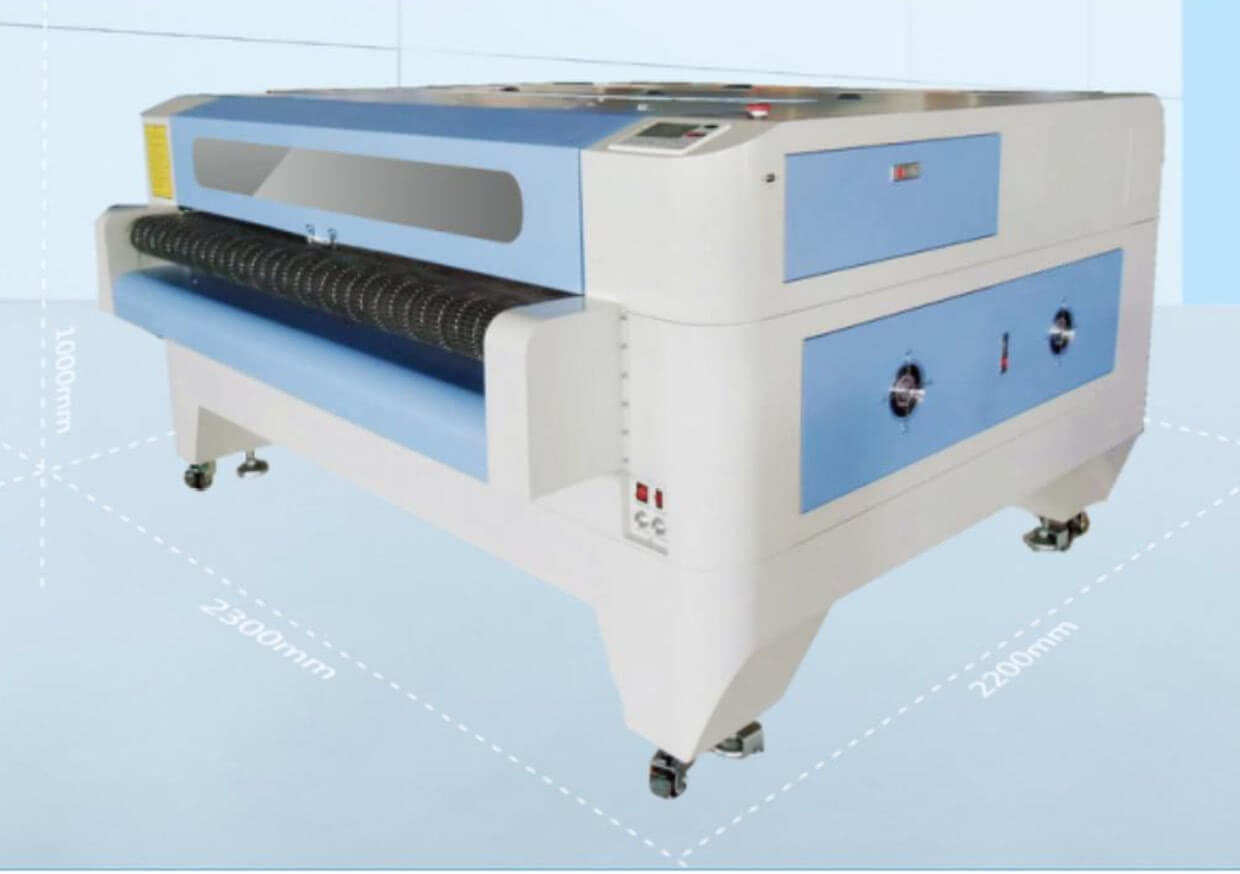

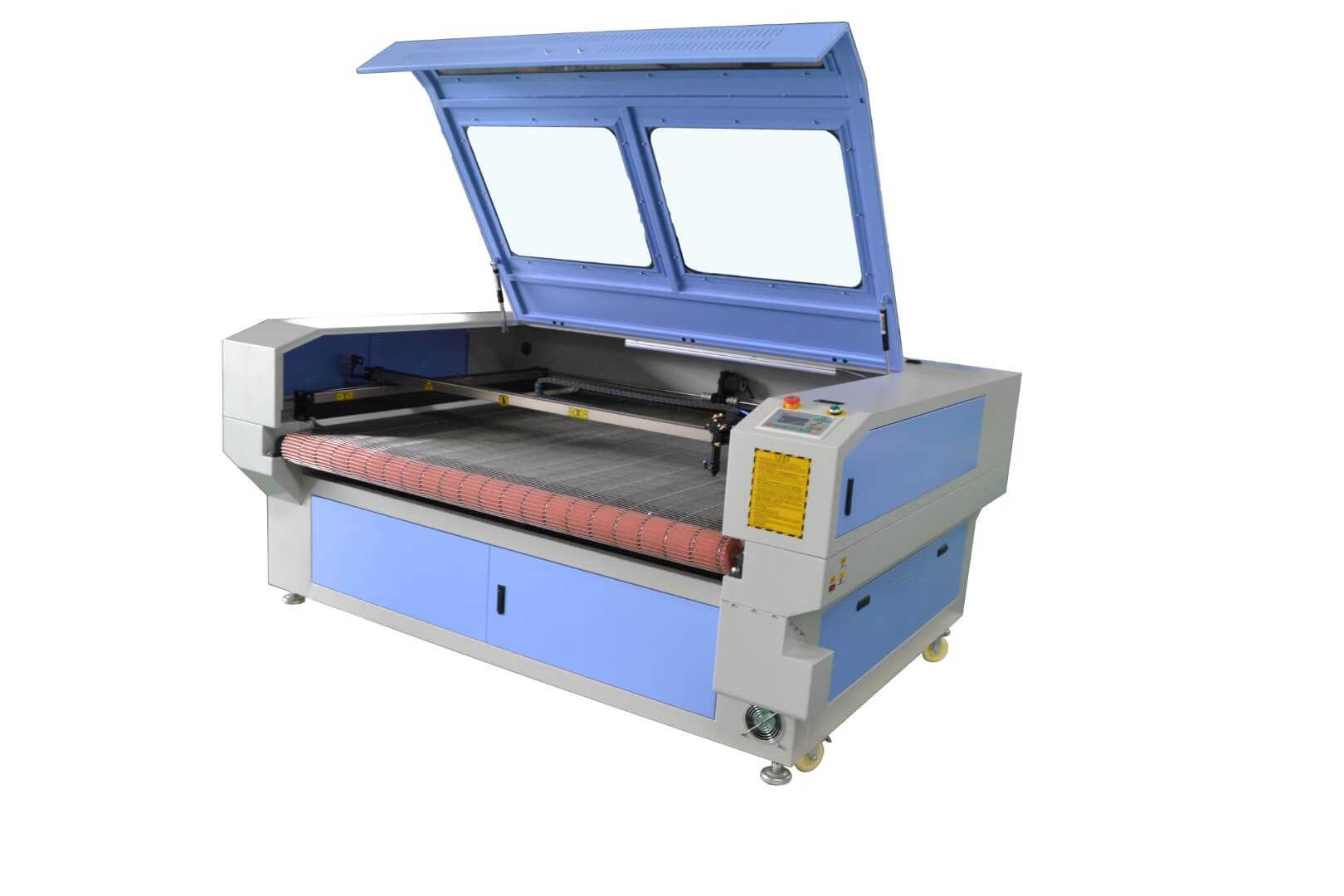

Auto Feeding Fabric Laser Cutting Machine
BATEC 1610/1810/1630
Product by BatecOur Autofeeding CO2 laser systems mainly done for the garment and textile industry, where you have the material on endless roles. This material roles are hold on backside of the laser system and will be automatic transported to the processing area. With this help you can automatisize your process and increase the efficiency of your production. All kind of fabric but also paper on roles can be handled.
Blade working table Beijing Reci laser tube W1 80W Ruida control system Stepper motor and driver Water chiller for laser tube cooling Hiwin square guide rails Exhaust fan Air pump
| Cutting Speed | 0-40000mm/min |
|---|---|
| Engraving Speed | 0-60000mm/min |
| Resetting positioning accuracy | ≤±0.01mm |
| Resolution ratio | ≤0.0125 |
| Laser output | 1-100%softwaresetting |
| Min. shaping character | English 1.0mm x 1.0mm |
| Warranty | Two years |
| BATEC-1610 | Laser Power CO2 - 90/100 W; Cutting Area - 900 * 600 mm |
|---|---|
| BATEC-1810 | Laser Power - 90/100/150 W; Cutting Area - 900 * 1300 mm |
| BATEC-1630 | Laser Power - 90/100/150 W; Cutting Area - 1600 * 1000 mm |

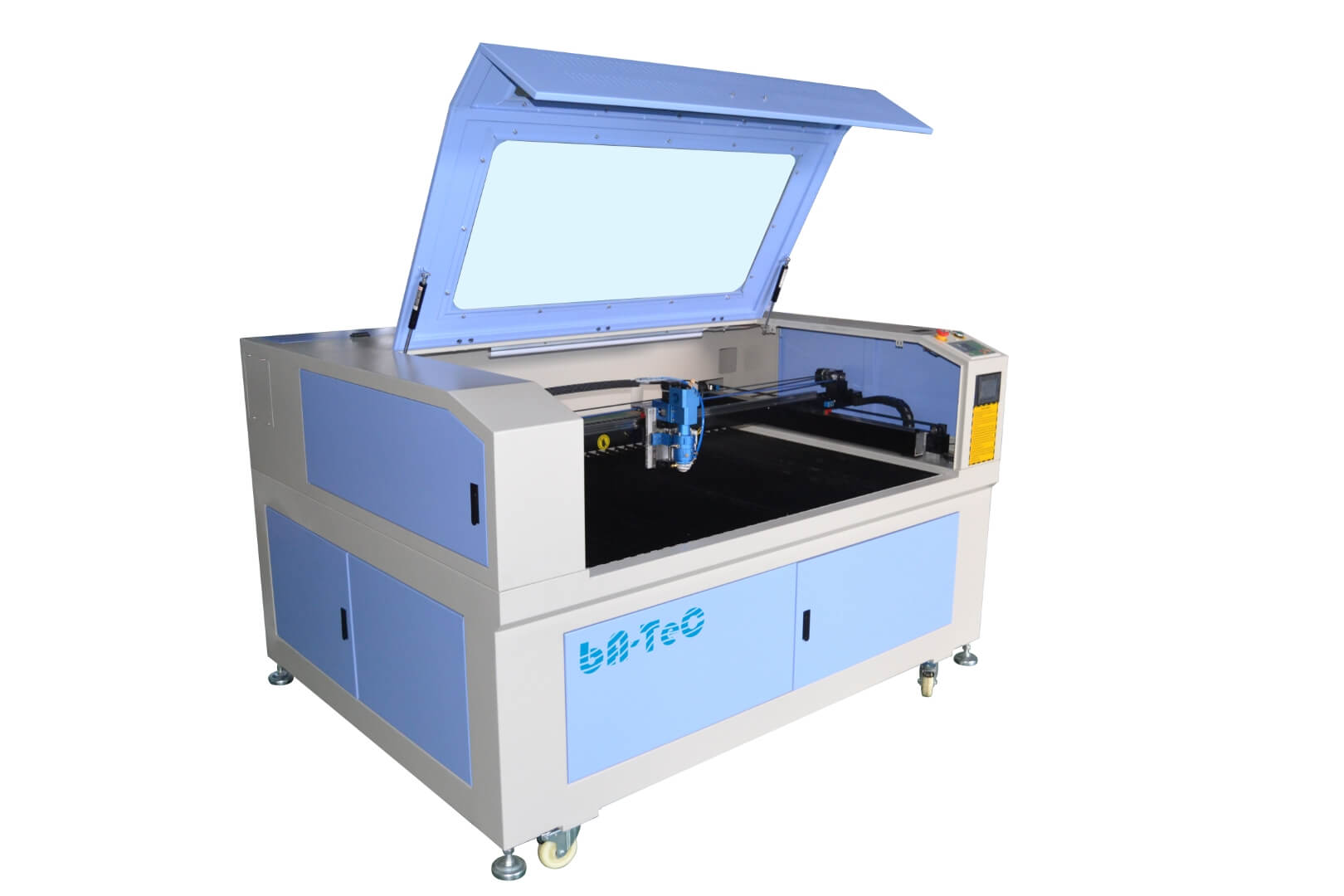

Hybrid Laser Cutting machine for metal and non metal applications
BA HP 1390/1325
Product by BatecOur CO2 Laser Systems are based on sealed glass laser tubes or on demand also on RF excited metal tubes. We offer a wide range of output power from 40 W up to 400 Watt. Applications are typical nonmetal Material like Acrylicglas, Wood, Fabric, Leather and much more. We can supply optimised system for special application with special focusing heads and other special Accessories.
Blade working table CO2 laser tube 150W Ruida control system Stepper motor and driver Water chiller for laser tube cooling Belt and Hiwin square guide rails Auto focus cutting head Exhaust fan Air pump
| Cutting Speed | 0-40000mm/min |
|---|---|
| Engraving Speed | 0-60000mm/min |
| Resetting positioning accuracy | ≤±0.01mm |
| Resolution ratio | ≤0.0125 |
| Laser output | 1-100% software setting |
| Min. shaping character English | 1.0mm x 1.0mm |
| Warranty | 12 months |
| BATEC-1390 | Laser Power CO2 - Reci 80W-90W; Cutting Area - 1300 x 900mm |
|---|---|
| BATEC-1325 Laser Engraving and Cutting Machine | Laser Power - 80W/100W/150W/180W; Cutting Area - 1300mm*2500mm (51in*98in) (L*W) |
| BATEC-1325 Metal and No-metal Laser Cutting Machine | Laser Power - 280W; Cutting Area - 1300mm*2500mm |

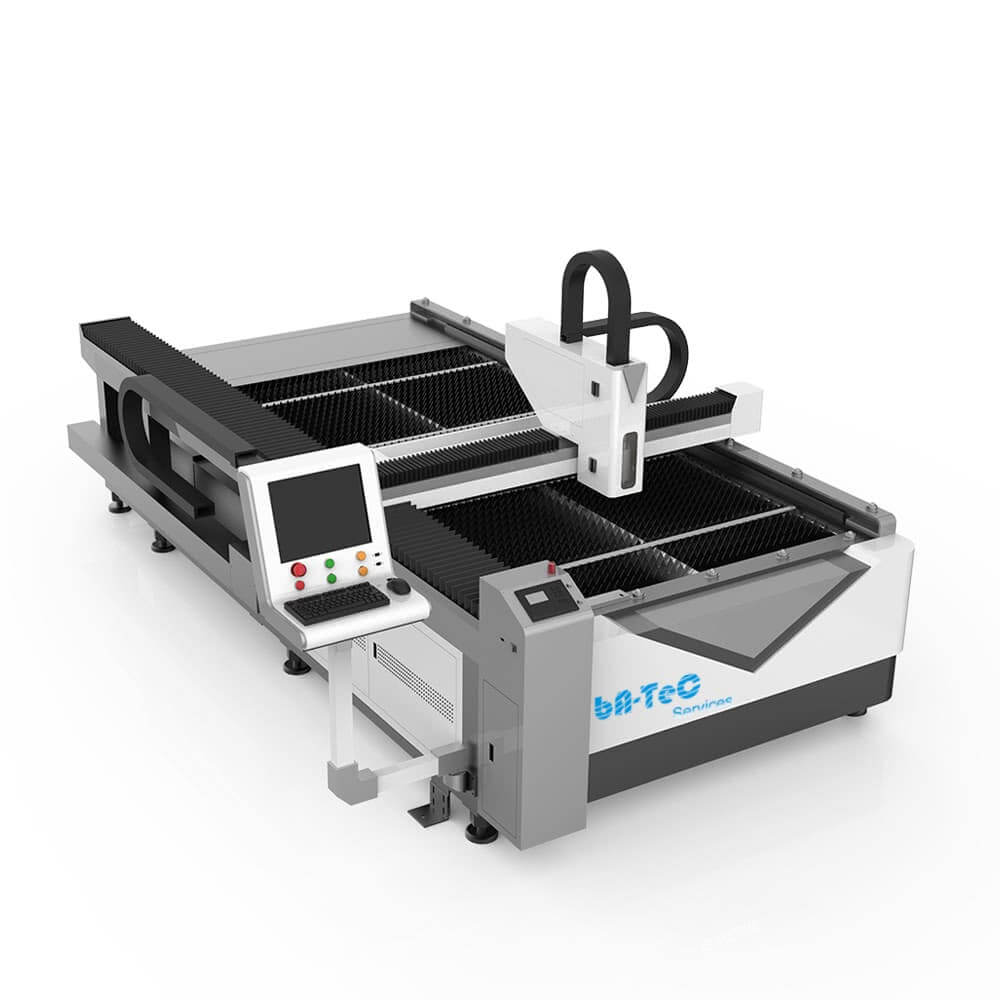

Fiber Laser Cutting Systems 1325/1325L/1325LC/ 1325LE
BATEC FIB 1325/1325L/1325LC/ 1325LE
Product by BatecA fiber laser is a laser in which the active gain medium is an optical fiber doped with rare earth elements. Advantage of Fiber Laser is the excellant beam quality so that a laser beam can be focused much better and so the power density is getting much higher compare to high power CO2 Lasers. An further advantage is the better efficiency and so a lower power consumption and the small size of the laser itself. A fiber laser is nearly service free due his much longer lifetime compared to CO2 Laser
1. Raycus 500w fiber laser generator AU3TECH operation system AU3TECH laser head 3rd generation aviation aluminum beam France DELTA servo motor/France Schneider servo motor Taiwan TBI ball screw transmission Taiwan Airtac pneumatic parts Taiwan square rail Lubrication system Smoke purify system Tongfei water cooling chiller 2. Special fiber laser cutting head and automatic following system The machine uses Jiaqiang fiber laser cutting head and touchless automatic following system, which can automatically adjust the focal length to provide the best cutting effect and avoid scratching the material due to the focal length change caused by the material block. 3. Transmission system: Transmission system adopts German ATLANTA pinion and rack precision transmission, Japanese servo motor 4. Control system: The operating system can use editing software and secondary development tools to customize special interfaces and functions so that customers can create their own human-machine interface.
| CuttLaser generator | fiber laser |
|---|---|
| Wavelength | 1064mn |
| Bed | Welding |
| Working width | 1300/2500 |
| Positioning Accuracy | 0.03mm |
| Repeatability | 0.015mm |
| Maximum Acceleration | 1.2G |
| Maximum Idle Speed | 120m/min |
| Cutting Accuracy | +0.02mm |
| Voltage | 380V, 50Hz/60Hz, 60A |
| Dimension | 5540*3920*1954mm |
| Weight | 2000kg |
| Material to handle | Steel, MS, Copper, Brass and more |
| BATEC FIB 1325L-500/750 | Laser Power FIB - 500/750 W; Cutting Area 1300 * 2500 mm |
|---|---|
| BATEC FIB 1325LC-500/750 | Laser Power FIB - 500/750 W; Cutting Area 1300 * 2500 mm |
| BATEC FIB 1325LE-500/750/1000/1500/2000 | Laser Power FIB - 500/750/1000/1500/2000 W |

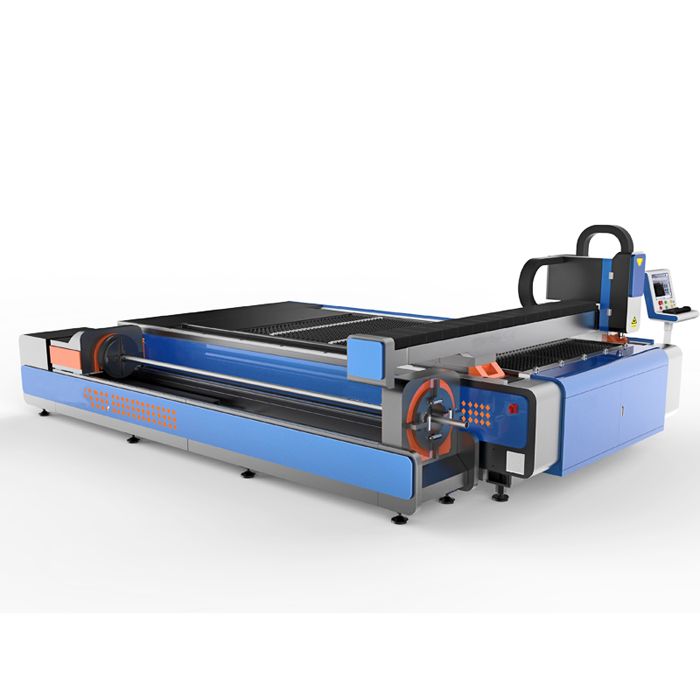

BATEC FIB 3015LE TP Series for plate and tube cutting combined
BATEC FIB 3015LE TP Series
Product by BatecA fiber laser is a laser in which the active gain medium is an optical fiber doped with rare earth elements. Advantage of Fiber Laser is the excellant beam quality so that a laser beam can be focused much better and so the power density is getting much higher compare to high power CO2 Lasers. An further advantage is the better efficiency and so a lower power consumption and the small size of the laser itself. A fiber laser is nearly service free due his much longer lifetime compared to CO2 Laser
Switzerland Raytools laser head 6m full automatically chuck cutting diameter 20mm-220mm Japan YASKAWA servo motor German ATALANTA gear rack Japan SMC/Taiwan Airtac pneumatic parts French Schneider electronic parts Automatic lubrication system Integrated cast aluminum beam Taiwan HIWIN square rail Laser head automatically adjust system. Cypcut operation system Smoke purify system Water cooling machine One year warranty warranty
| Cutting Speed | Acc. Cutting Speed table |
|---|---|
| Engraving Speed | na |
| Material to handle | Steel, MS, Copper, Brass and more |
| BATEC FIB 3015LE TP E-1000 | Laser Power FIB - 1000 W; Cutting Area 1500 * 3000 mm |
|---|---|
| BATEC FIB 3015LE TP-1000 | Laser Power FIB - 1000 W; Cutting Area 1500 * 3000 mm |
| BATEC FIB 3015LE TP-1500 | Laser Power FIB - 1500 W; Cutting Area 1500 * 3000 mm |

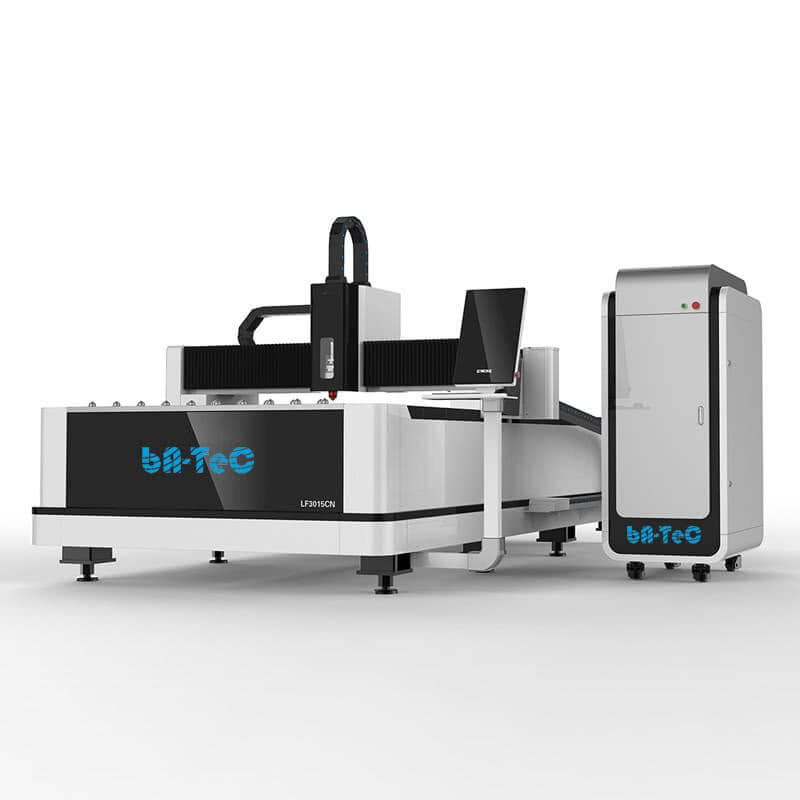

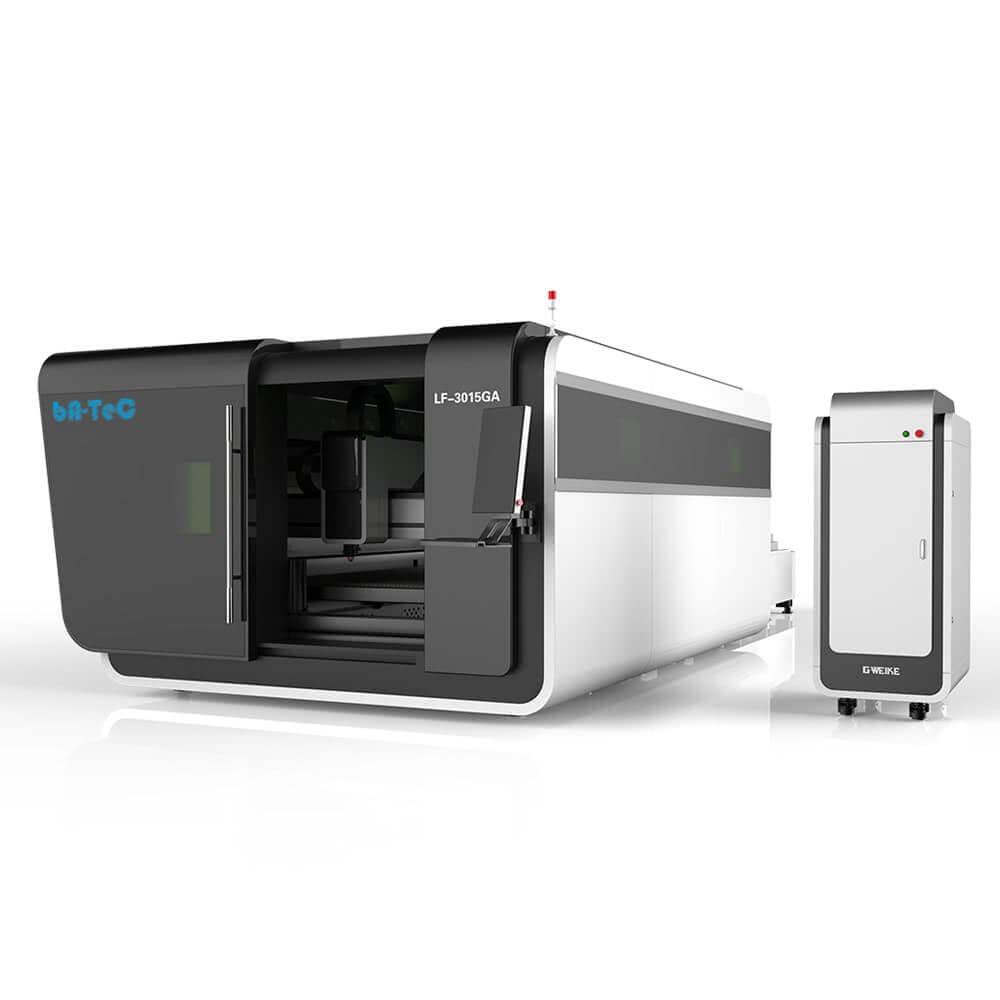

Fiber Laser Cutting Systems 3015LE/3015E/3015LN
BATEC FIB 3015LE/3015E/3015LN
Product by BatecA fiber laser is a laser in which the active gain medium is an optical fiber doped with rare earth elements. Advantage of Fiber Laser is the excellant beam quality so that a laser beam can be focused much better and so the power density is getting much higher compare to high power CO2 Lasers. An further advantage is the better efficiency and so a lower power consumption and the small size of the laser itself. A fiber laser is nearly service free due his much longer lifetime compared to CO2 Laser
Raycus or IPG laser source AU3TECH operation system AU3TECH laser head Taiwan APEX rack pinion Taiwan HIWIN square rail Laser head automatically adjust system. Smoke purify system Water cooling machine Taiwan DELTA servo motor and driver
| Cutting Speed | Acc. Cutting Speed table |
|---|---|
| Engraving Speed | na |
| Material to handle | Steel, MS, Copper, Brass and more |
| BATEC FIB 3015LE-500/750/1000/1500/2000/3000/4000 | Laser Power FIB - 500/750/1000/1500/2000/3000/4000 W; Cutting Area 3000 * 1500 mm |
|---|---|
| BATEC FIB 3015E-500/750/1000 | Laser Power FIB - 500/750/1000 W; Cutting Area 3000 * 1500 mm |
| BATEC FIB 3015LN-500/750/1000/1500 | Laser Power FIB - 500/750/1000/1500 W; Cutting Area 3000 * 1500 mm |

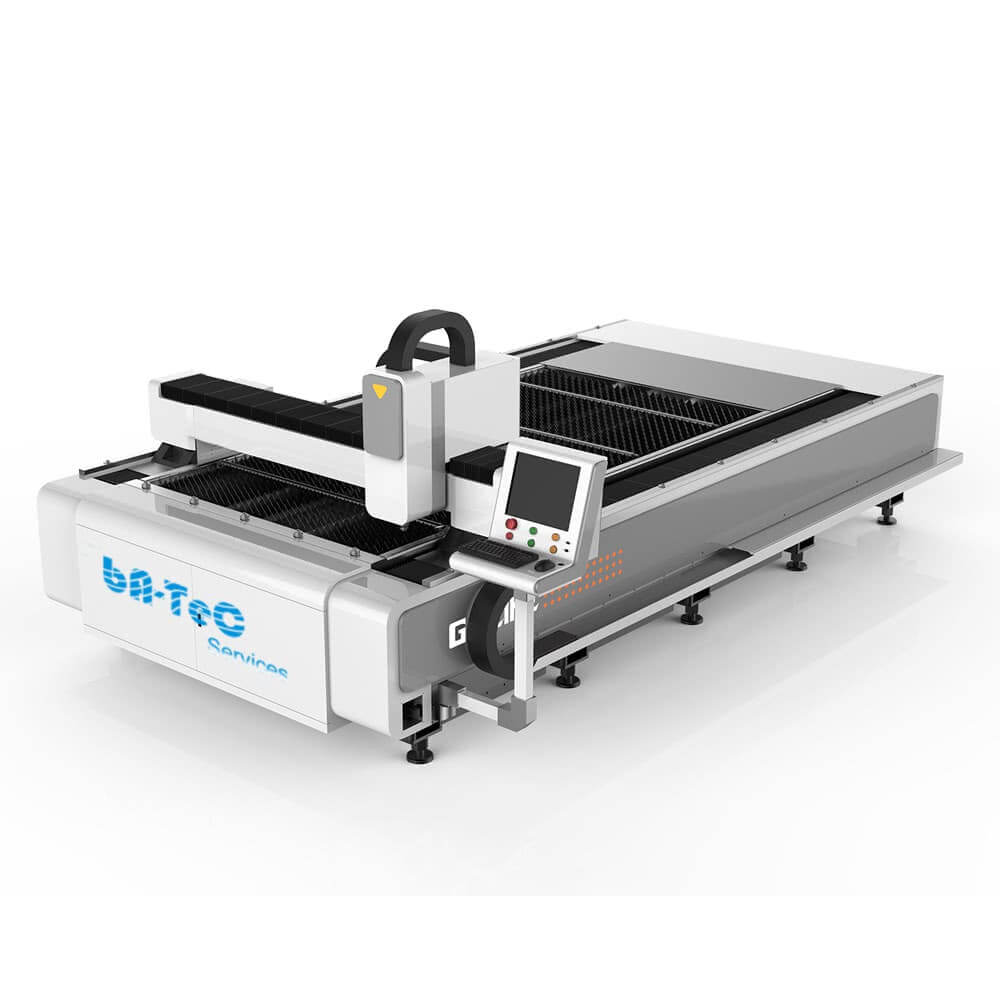

Fiber Laser Cutting Systems 3015CN
BATEC FIB 3015CN
Product by BatecA fiber laser is a laser in which the active gain medium is an optical fiber doped with rare earth elements. Advantage of Fiber Laser is the excellant beam quality so that a laser beam can be focused much better and so the power density is getting much higher compare to high power CO2 Lasers. An further advantage is the better efficiency and so a lower power consumption and the small size of the laser itself. A fiber laser is nearly service free due his much longer lifetime compared to CO2 Laser
Switzerland Raytools laser head France Motovario motor reducer Japan YASKAWA servo motor 850w Taiwan APEX gear rack Japan SMC/Airtac pneumatic parts French Schneider electronic parts Automatic lubrication system. Integrated cast aluminum beam Taiwan HIWIN square rail Laser head automatically adjust system. Cypcut operation system Smoke purify system Water cooling machine One year warranty
| Cutting Speed | Acc. Cutting Speed table |
|---|---|
| Engraving Speed | na |
| Material to handle | Steel, MS, Copper, Brass and more |
| BATEC FIB 3015E-500/750/1000 | Laser Power FIB - 500/750/1000 W; Cutting Area 3000 * 1500 mm |
|---|---|
| BATEC FIB 3015LN-500/750/1000/1500 | Laser Power FIB - 500/750/1000/1500 W; Cutting Area 3000 * 1500 mm |

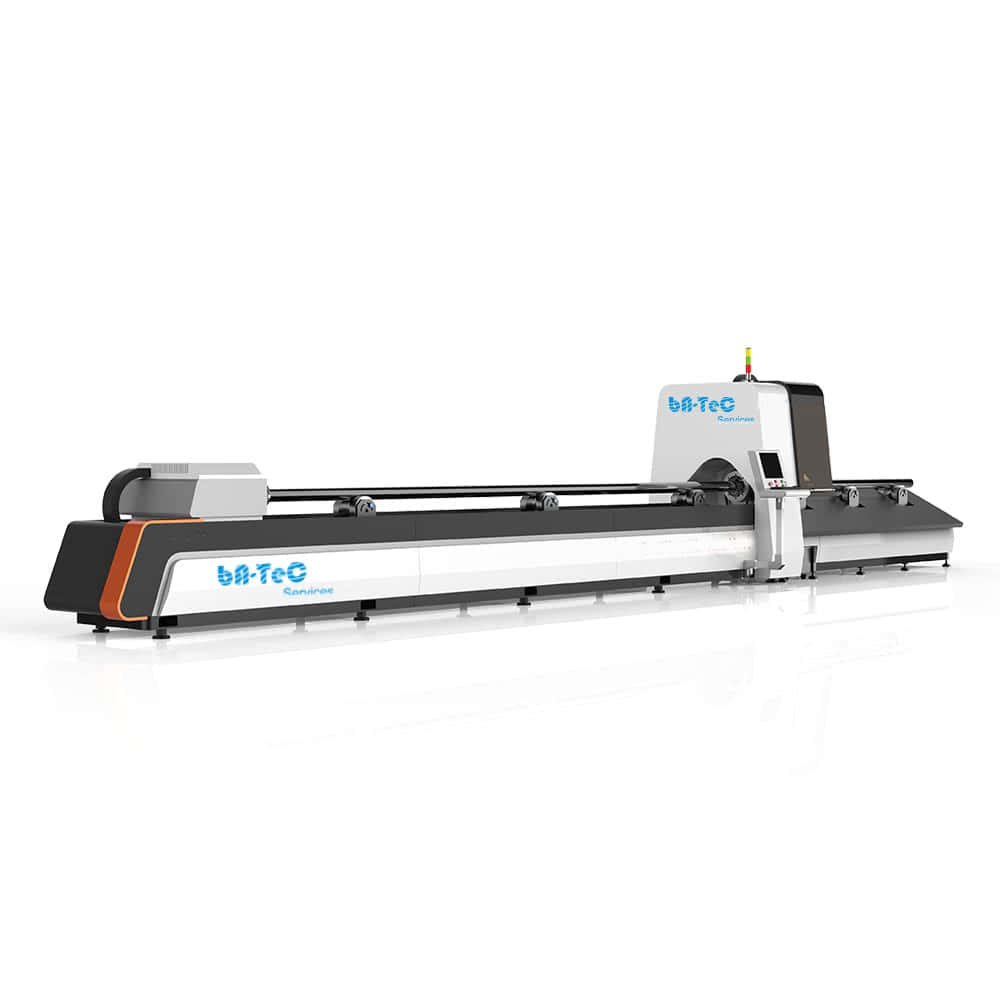

Fiber Laser Tube Cutting machine FIB 60M-500/750/1000
BATEC FIB 60M-500/750/1000
Product by BatecA fiber laser is a laser in which the active gain medium is an optical fiber doped with rare earth elements. Advantage of Fiber Laser is the excellant beam quality so that a laser beam can be focused much better and so the power density is getting much higher compare to high power CO2 Lasers. An further advantage is the better efficiency and so a lower power consumption and the small size of the laser itself. A fiber laser is nearly service free due his much longer lifetime compared to CO2 Laser
Switzerland Raytools laser head 6m full automatically chuck cutting diameter 20mm-220mm Japan YASKAWA servo motor German ATALANTA gear rack Japan SMC/Taiwan Airtac pneumatic parts French Schneider electronic parts Automatic lubrication system Integrated cast aluminum beam Taiwan HIWIN square rail Laser head automatically adjust system. Cypcut operation system Smoke purify system Water cooling machine One year warranty warranty
| Cutting Speed | Acc. Cutting Speed table |
|---|---|
| Engraving Speed | na |
| Material to handle | Steel, MS, Copper, Brass and more |
| BATEC FIB 60M-500/750/1000 | Laser Power FIB - 500/750/1000 W; Cutting Area 1500 * 3000 mm |
|---|

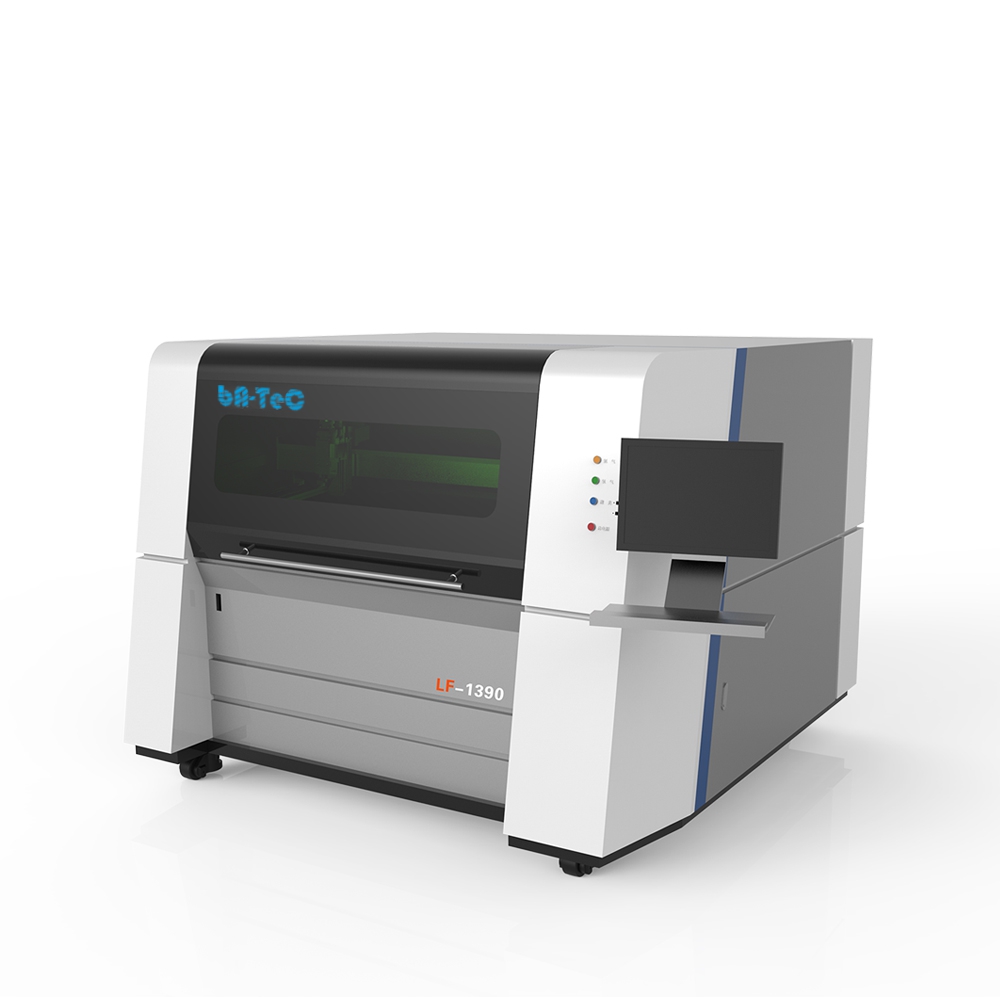

Fiber Laser Cutting Systems
BATEC FIB 0640/1390
Product by BatecA fiber laser is a laser in which the active gain medium is an optical fiber doped with rare earth elements. Advantage of Fiber Laser is the excellant beam quality so that a laser beam can be focused much better and so the power density is getting much higher compare to high power CO2 Lasers. An further advantage is the better efficiency and so a lower power consumption and the small size of the laser itself. A fiber laser is nearly service free due his much longer lifetime compared to CO2 Laser
Switzerland Raytools laser head Japan Panasonic servo motor Taiwan TBI ball screw drive Japan SMC /Airtac pneumatic parts French Schneider electronic parts Laser head automatically adjust system Cypcut operation system Smoke exhaust system Water cooling machine One year warranty
| Cutting Speed | Acc. Cutting Speed table |
|---|---|
| Engraving Speed | na |
| Material to handle | Steel, MS, Copper, Brass and more |
| BATEC FIB 0640-500 | Laser Power FIB - 500 W; Cutting Area 600 * 400 mm |
|---|---|
| BATEC FIB 0640-750 | Laser Power FIB - 750 W; Cutting Area 600 * 400 mm |
| BATEC FIB 1390-500 | Laser Power FIB - 500 W; Cutting Area 1300 * 900 mm |
| BATEC FIB 1390-750 | Laser Power FIB - 750 W; Cutting Area 1300 * 900 mm |
CO2 Laser Marking System CO2 10600 nm
BA CO2MARK CO2 Laser 10600 nm
Product by BatecThis Laser System is especially designed for fast marking and engraving of non metal materials. But also fast cutting is possible if the material is not too thick like wedding cards and more
Best cutting edges Smallest cut slit to avoid losses of the material Smallest possible Laser beam spot size to realize also very fine cuts. We offer this system with high quality RF laser from China or with Synrad RF laser, number on in the world for CO2 lasers.
| Power | 10W / 30W/ 50W/ 75W / 100W |
|---|---|
| Laser Wavelength | 1060nm |
| Marking Area | 110mm*110mm / 145mm*145mm |
| Optional Marking Area | 50mm*50mm / 100mm*100mm / 200mm*200mm / 300mm*300mm / 300mm*400mm |
| Marking Depth | ≤1mm |
| Marking Speed | 7000mm/s |
| Controller(Software--EzCad) | JCZ |
| Dimension (L*W*H) | 650mm*210mm*550mm |
| Marking Laser CO2 Laser 10600 nm | Laser Power FIB - 10W / 30W/ 50W/ 75W / 100W; Cutting Area 110mm*110mm / 145mm*145mm |
|---|

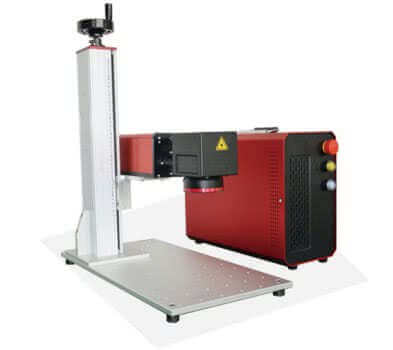

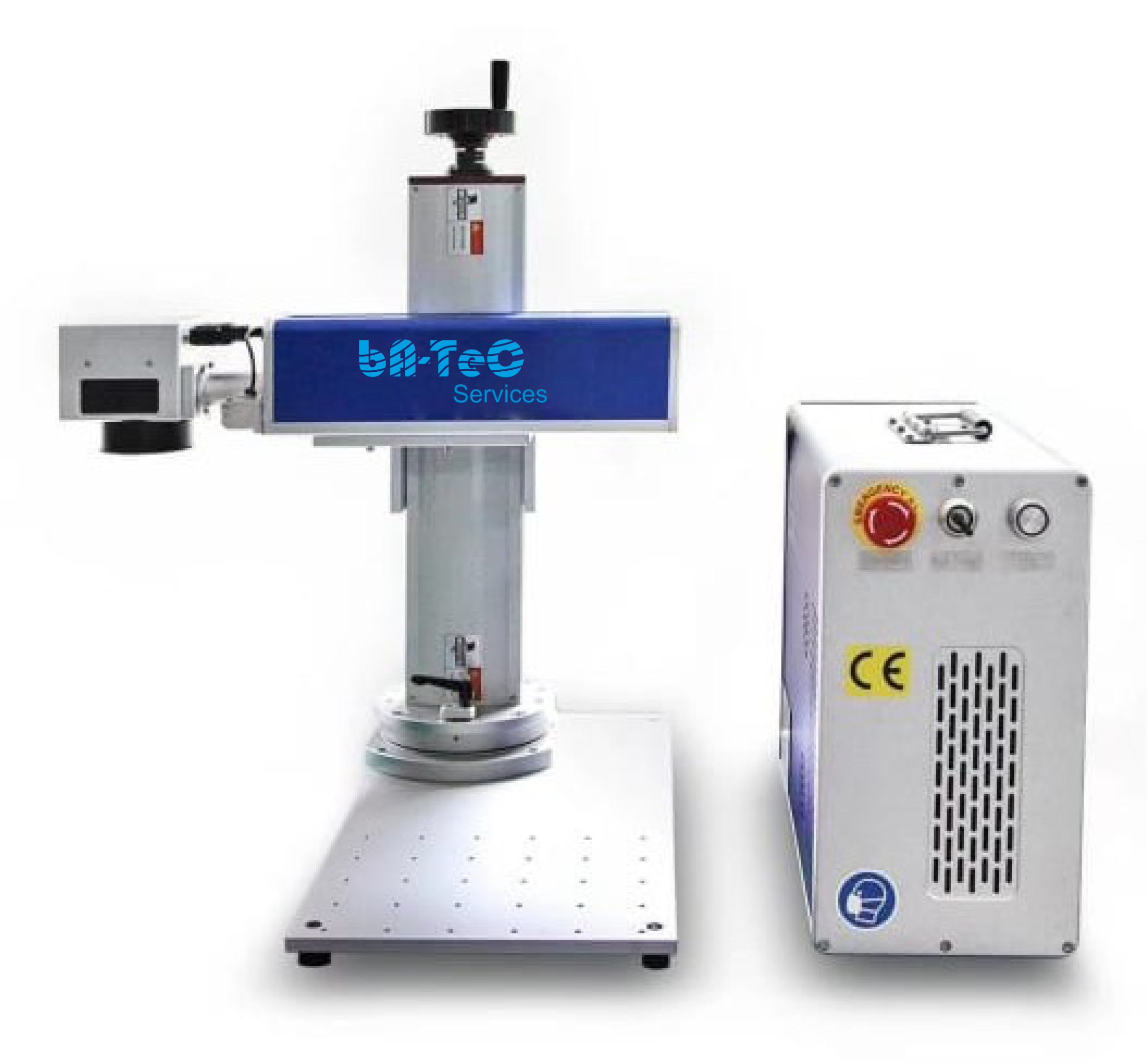

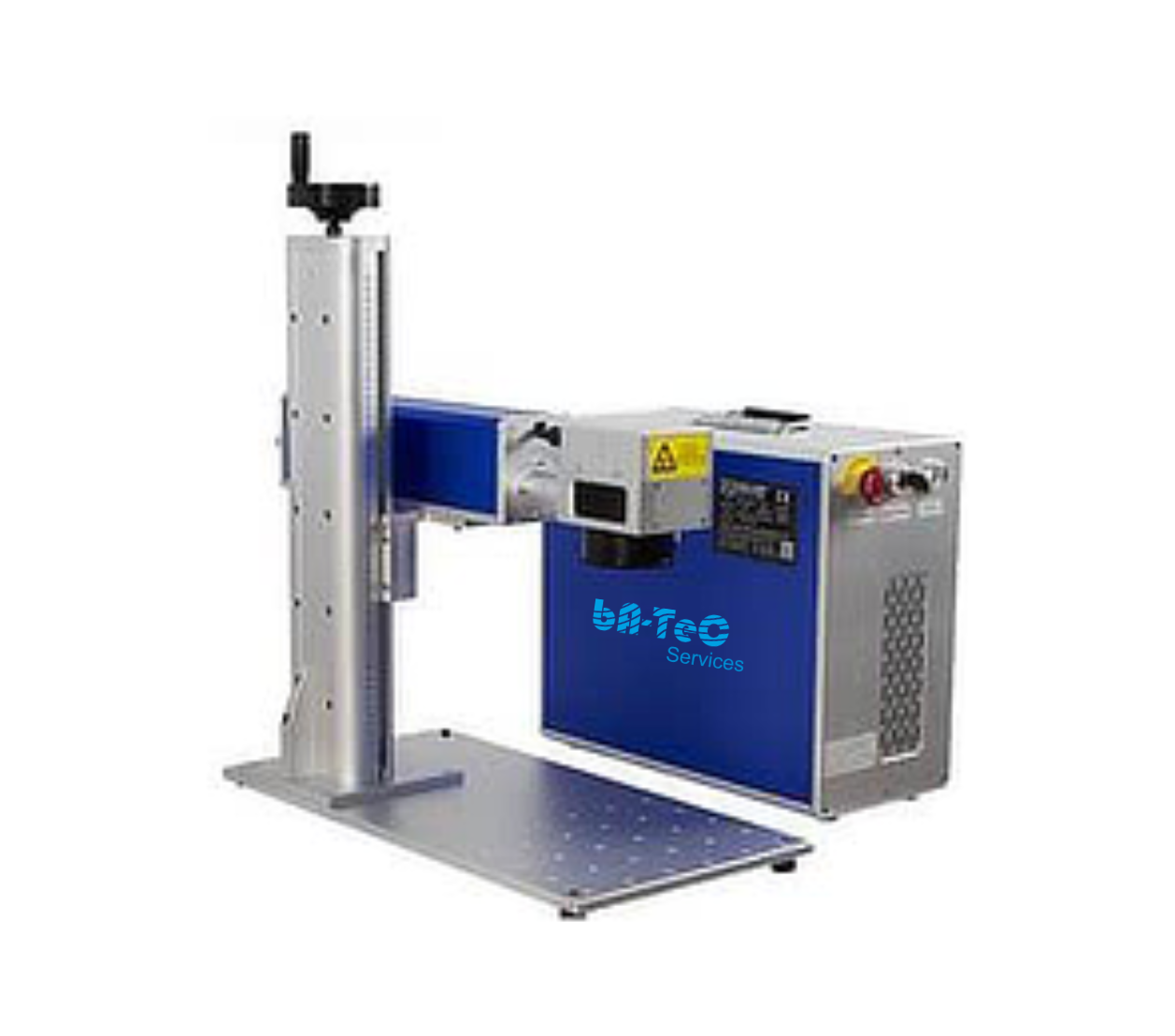

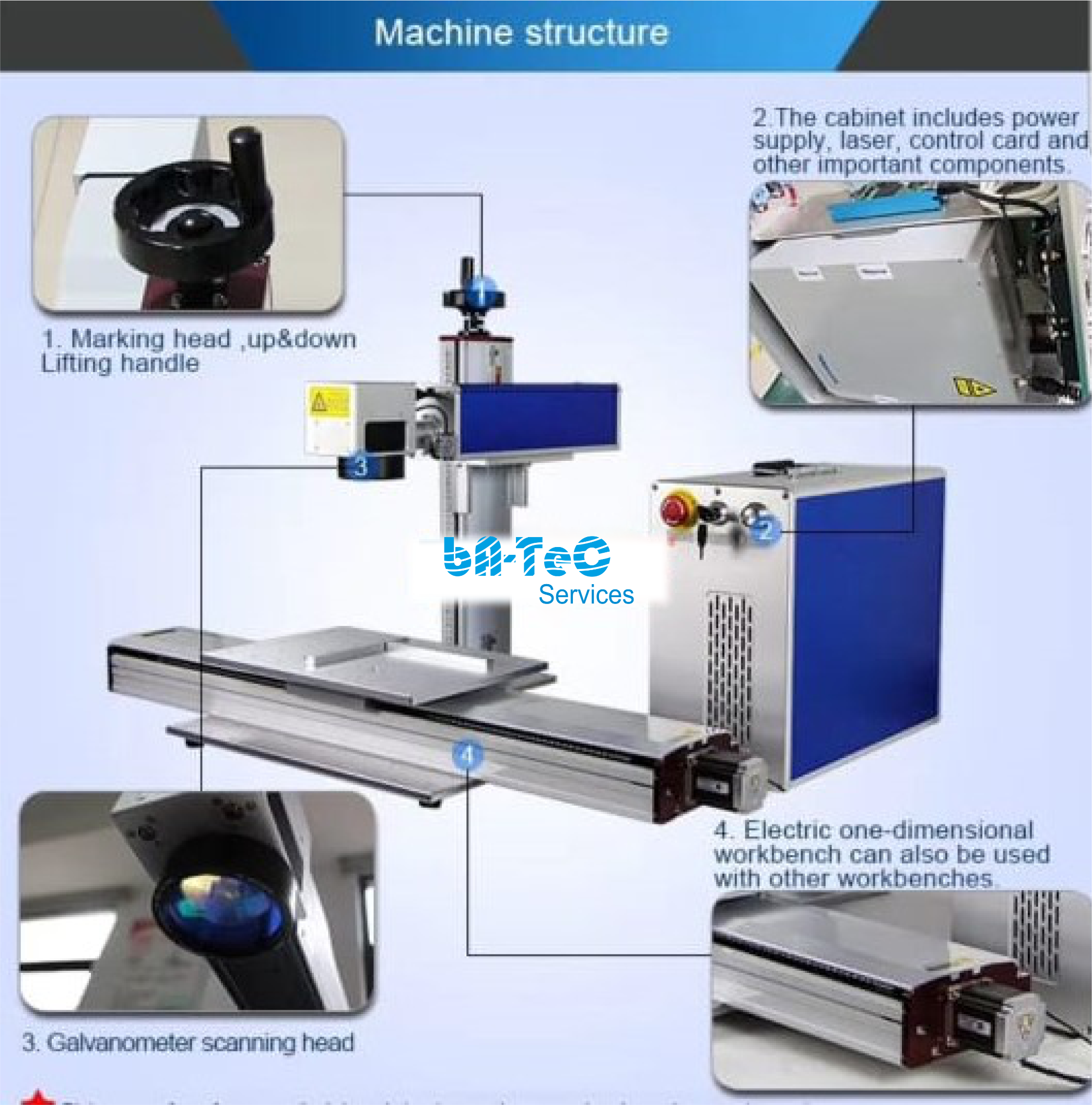

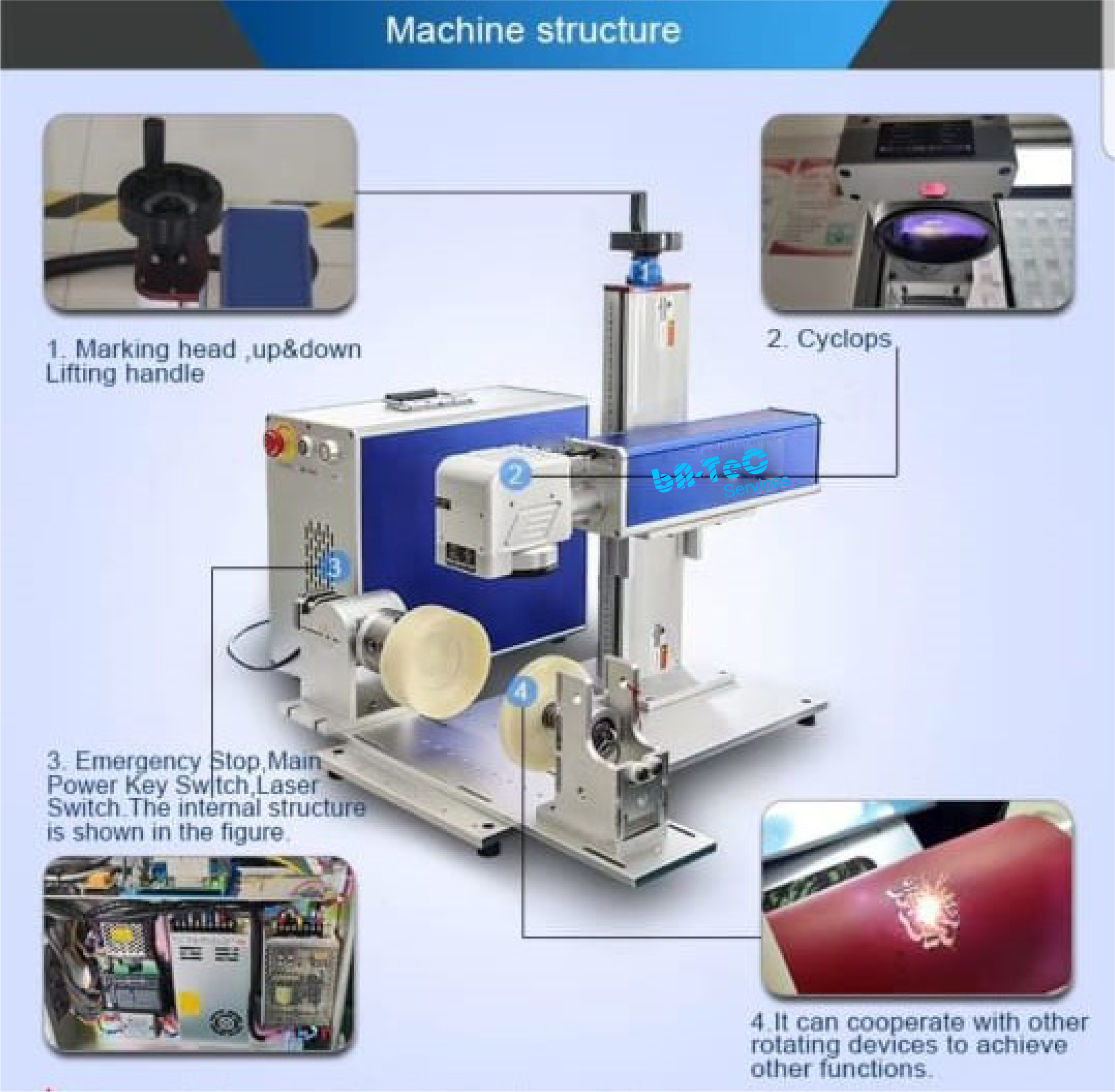

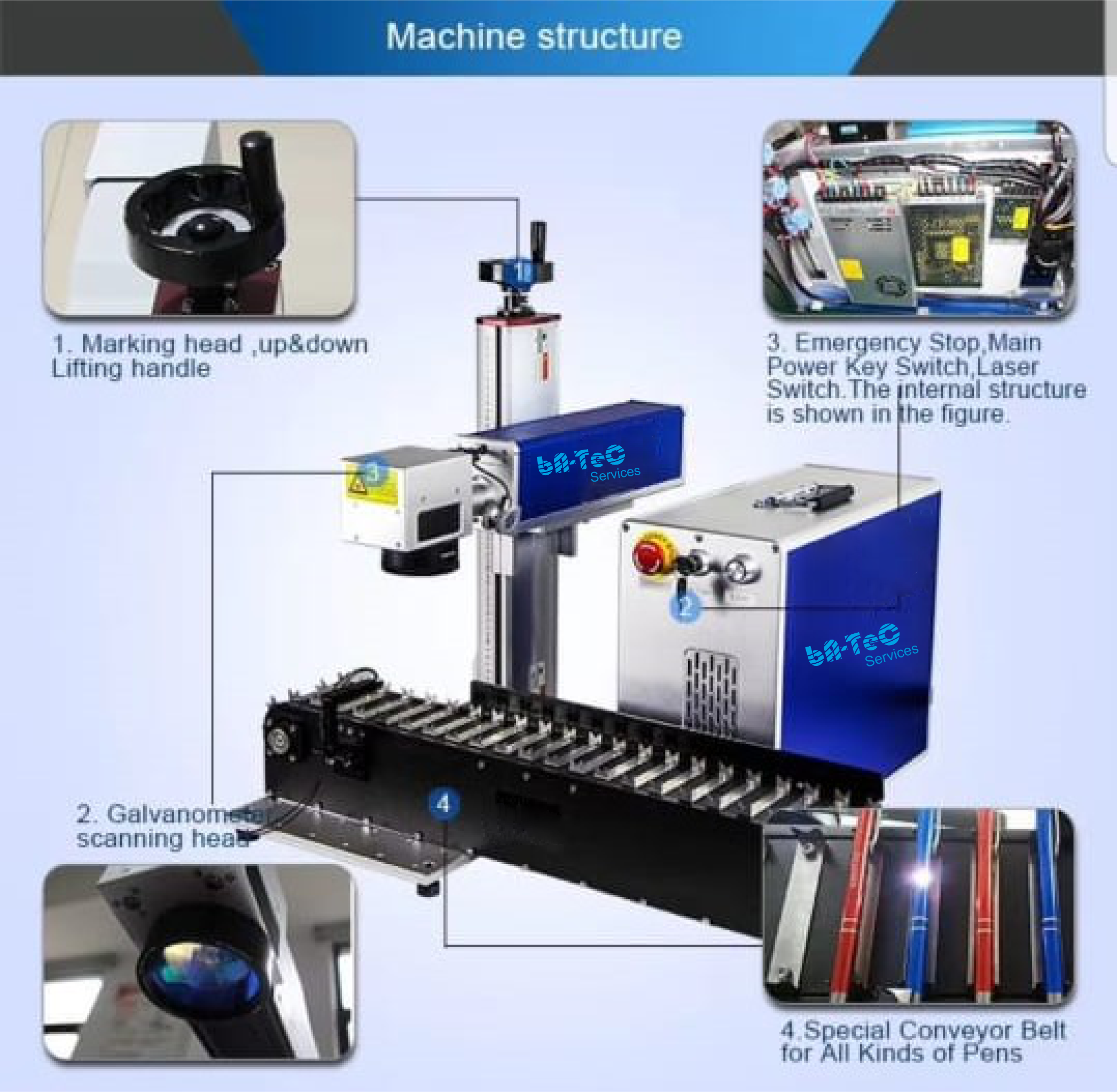

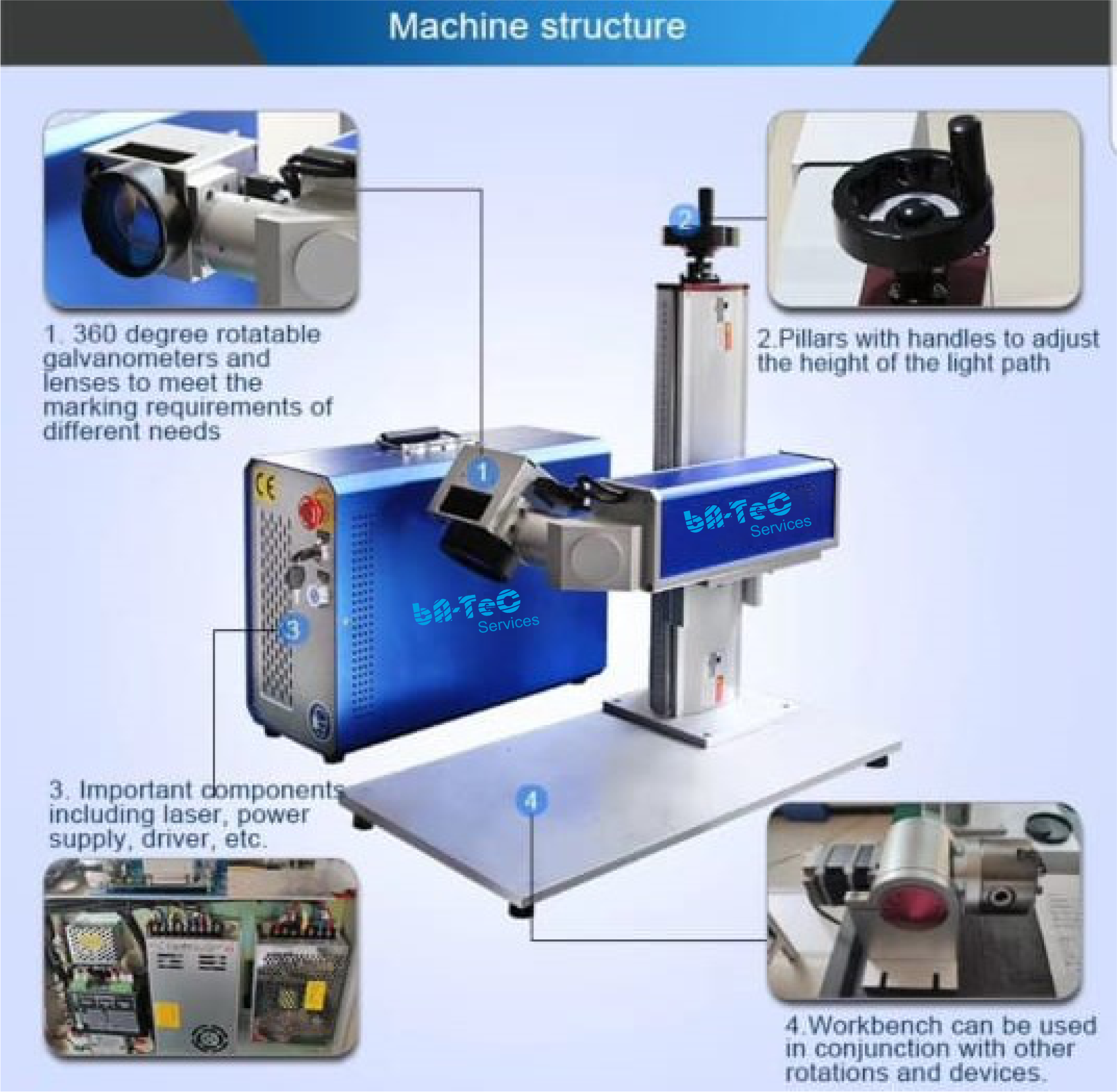

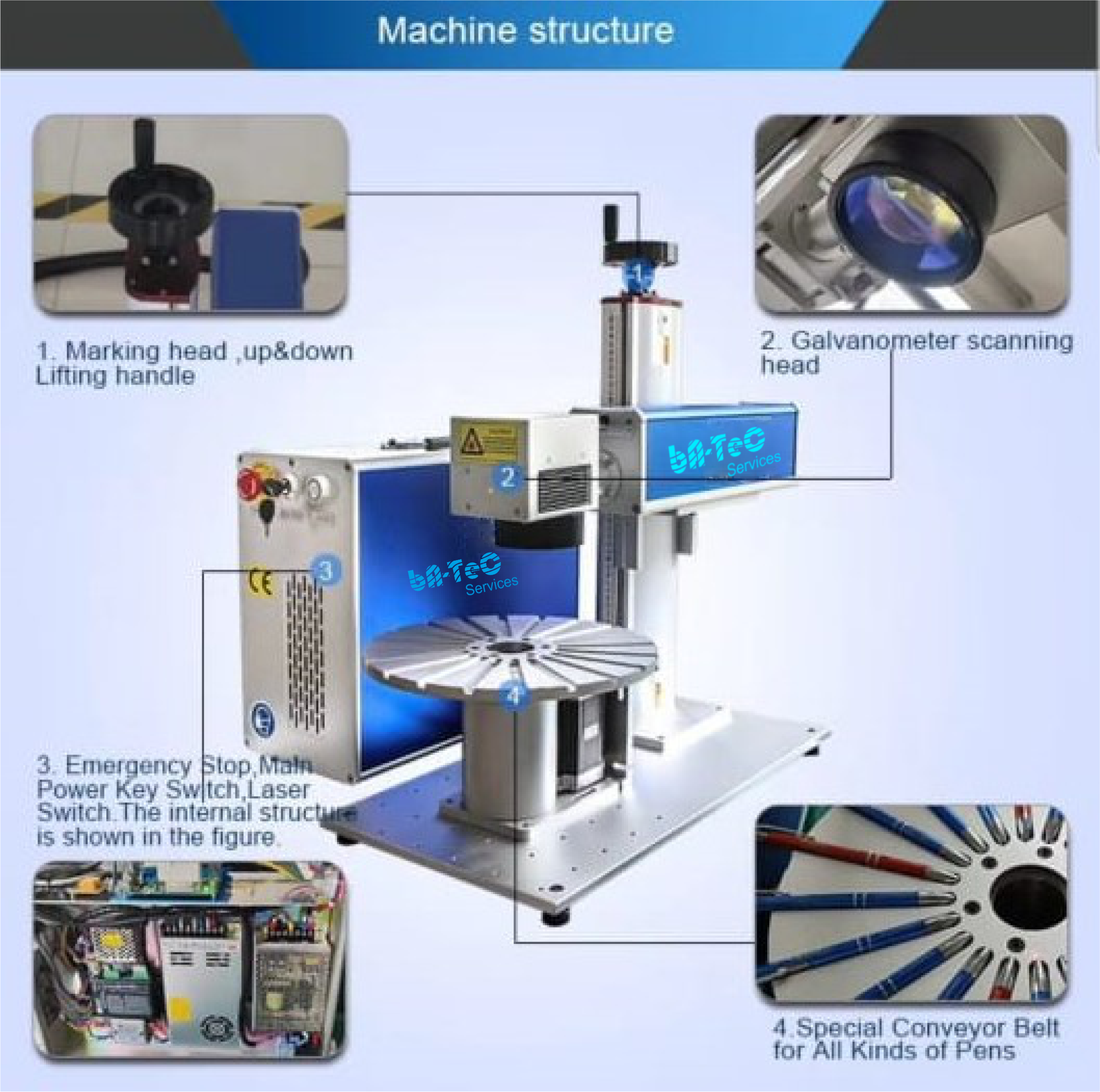

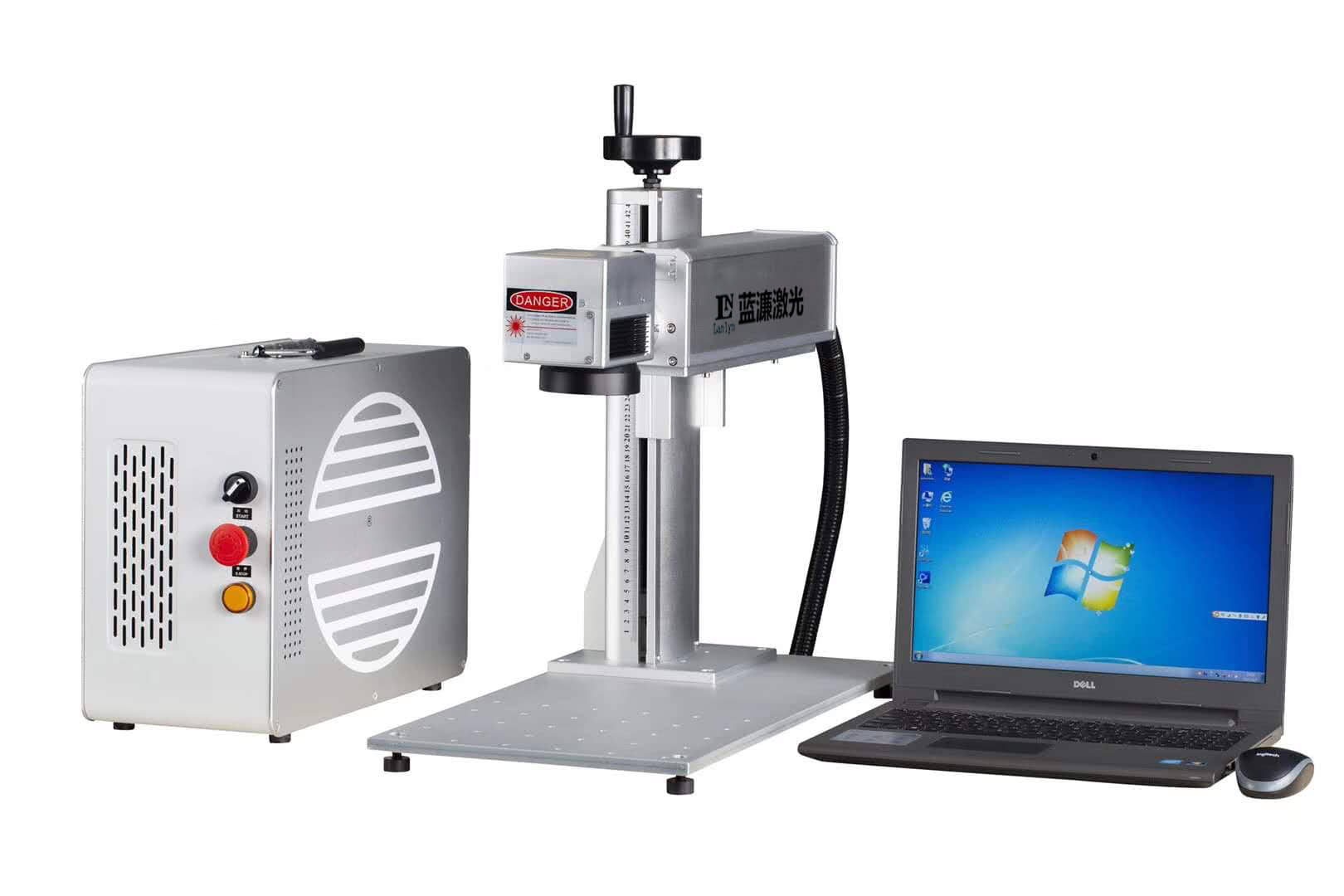

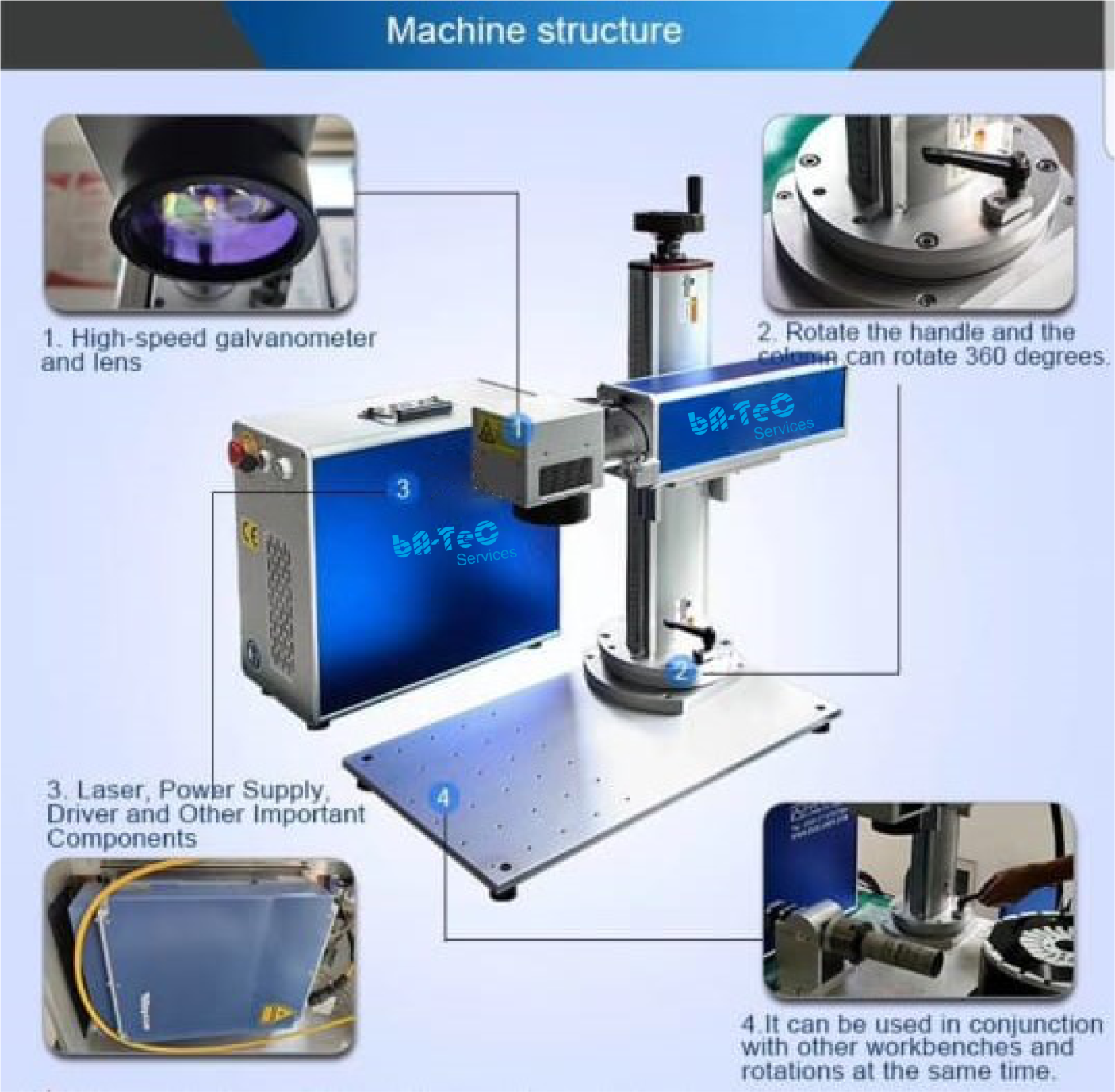

Fiber Laser Marking Systems
BA FIBS 10/20/30/50/100
Product by BatecThis Laser System is especially designed for Marking of any kind of metal like steel, brass and copper and much more.
Best marking results Smallest letters can be easily done due the optics Smallest possible Laser beam spot size to realize also very fine cuts. As option a special fume extractor to avoid dust in your lab.
| Power | 10W / 20W/ 30W/ 50W/ 100 W |
|---|---|
| Laser Wavelength | 1064nm |
| Marking Area | 110mm*110mm / 145mm*145mm |
| Optional Marking Area | 50mm*50mm / 100mm*100mm / 200mm*200mm / 300mm*300mm / 300mm*400mm |
| Marking Depth | ≤1mm |
| Marking Speed | 7000mm/s |
| Controller(Software--EzCad) | JCZ |
| Dimension (L*W*H) | 650mm*210mm*550mm |
| BA FIBS 10/20/30/50/100 | Laser Power FIB - 10W / 20W/ 30W/50W/100 W; |
|---|
Fiber Laser Cutting machine Gold and Silver
BATEC FIBM 10/20/50/100
Product by BatecThis Laser System is especially designed for Marking of any kind of metal like steel, brass and copper and much more.
Best marking results Smallest letters can be easily done due the optics Smallest possible Laser beam spot size to realize also very fine cuts. As option a special fume extractor to avoid dust in your lab.
| Power | 10W / 20W/ 30W/ 50W/ 100 W |
|---|---|
| Laser Wavelength | 1064nm |
| Marking Area | 110mm*110mm / 145mm*145mm |
| Optional Marking Area | 50mm*50mm / 100mm*100mm / 200mm*200mm / 300mm*300mm / 400mm*400mm |
| Marking Depth | ≤1mm |
| Marking Speed | 7000mm/s |
| Controller(Software--EzCad) | JCZ |
| Dimension (L*W*H) | 550mm*600mm*600mm |
| BATEC FIBM 10/20/50/100 | Laser Power FIB - 10W/20W/30W/50W/100 W; |
|---|
Hall Marking Laser
Hall Marking Laser
Product by BatecThis Laser System is especially designed and configured for Hall Marking. All parameters are optimised for this application
Best Marking results Smallest possible Laser beam spot size to realize also very fine structures. As option a special fume extractor to collect the vaporized gold and gold dust Output power range from 10 to 100 Watt Working area up to 250*250 mm
| Output power range | 10 to 100 Watt |
|---|---|
| Working area | 250*250 mm |
| Hall Marking Laser | Output power range - 10 to 100 Watt Working area - 250*250 mm |
|---|
Micro Mach Lasers
Micro Mach Lasers
Product by BatecThis ultra-fast laser machine has extremely short operating time, high peak power which can directly ionize the maaterials in the affected area and realize "Cold Processing" with high precision and low damage which can not be achieved by long pulse lasers. Hence this ultrafast laser is widely used for micro-machining applications. It also offers its customers superior solutions for high precision processing such as hole-drilling, etching and cutting of various materials.
Ultra-short pulsed laser is used as processing source, combined with the compound beam scanning system. It can realize the high precision of all kinds of metals, non-metals and composite materials.
| Power | 10W / 20W/ 30W/ 50W/ 100 W |
|---|---|
| Laser Wavelength | 1064nm |
| Marking Area | 110mm*110mm / 145mm*145mm |
| Optional Marking Area | 50mm*50mm / 100mm*100mm / 200mm*200mm / 300mm*300mm / 400mm*400mm |
| Marking Depth | ≤1mm |
| Marking Speed | 7000mm/s |
| Controller(Software--EzCad) | JCZ |
| Dimension (L*W*H) | 550mm*600mm*600mm |
| 3-Axis ultrafast laser machine | Machine Tool Stroke(X/Y/Z Axis) (mm) - 600/400/200 Positioning accuracy(X/Y/Z Axis) (mm) - 0.005/0.005/0.008 Laser average power (w) - 10/20 |
|---|---|
| 5-Axis ultrafast laser machine | Machine Tool Stroke(X/Y/Z Axis) (mm) - 1000/450/300 Positioning accuracy(X/Y/Z Axis) (mm) - 0.015/0.015/0.015 Laser average power (w) - 20/40/100 |
